FULLY ENCLOSABLE TENTS

4x4 (Full Tent) 5x5 (Full Tent)
Floor dimensions 4m x 4m 5m x 5m
Height 2.8m 3.5m
Weight 75kg 115kg
Tube frame pressure 0.29 bar 0.29 bar
Inflation/deflation valves 22mm 1 1
Pressure safety valves Optional Optional
Doors 4 4
Netted Windows 8 8
Storm covers over Doors/windows Yes Yes
Packed dimension 1,3m x 0,6m x 0,6m 1,5m x 0,7m x 0,7m
Fabric
Cover and storm covers PVC coated Polyester fabric 400 gr/sqm PVC coated Polyester fabric 400 gr/sqm
Groundsheet PVC coated Polyester fabric 600 gr/sqm PVC coated Polyester fabric 600 gr/sqm
Netting over windows PVC coated Polyester netting PVC coated Polyester netting
Inflatable tubing (Inflatable boat fabric) PVC coated Polyester fabric 1000 grm/sqm PVC coated Polyester fabric 1000 grm/sqm

GAZEBO-STYLE TENTS

4x4 (Gazebo) 5x5 (Gazebo)
Floor dimensions 4m x 4m 5m x 5m
Height 2.8m 3.5m
Weight 55kg 80kg
Tube frame pressure 0.29 bar 0.29 bar
Inflation/deflation valves 22mm 1 1
Pressure safety valves Optional Optional
Packed dimension 1,3m x 0,6m x 0,6m 1,5m x 0,7m x 0,7m
Fabric
Groundsheet PVC fabric 600 gr/sqm PVC fabric 600 gr/sqm
Inflatable tubing(boat fabric) PVC fabric 1000 grm/sqm PVC fabric 1000 grm/sqm

CUSTOMISATIONS

ARK can provide custom branding and labelling
Additional securing points can be added.

4x4 5x5
Floor dimensions 4m x 4m 5m x 5m
Height 2.8m 3.5m
Weight 75kg 115kg
Tube frame 0.29 bar 0.29 bar
Inflation/deflation valves 22mm 1 1
Pressure safety valves Optional Optional
Doors 4 4
Netted Windows 8 8
Storm covers over Doors/windows Yes Yes
Packed dimension 1,3m x 0,6m x 0,6m 1,5m x 0,7m x 0,7m
Fabric
Cover and storm covers PVC coated Polyester fabric 400 gr/sqm PVC coated Polyester fabric 400 gr/sqm
Groundsheet PVC coated Polyester fabric 600 gr/sqm PVC coated Polyester fabric 600 gr/sqm
Netting over windows PVC coated Polyester netting PVC coated Polyester netting
Inflatable tubing(Inflatable boat fabric) PVC coated Polyester fabric 1000 grm/sqm PVC coated Polyester fabric 1000 grm/sqm

ZAMBEZI KZ. SERIES

SERIES

KZ450
KZ490
KZ550

APPLICATIONS

Commercial whitewater adventure rafting | Running high-volume grade 5 river rapids.

When the mighty Inyamiyami and the ZAMBEZI KZ go head to head, ARK's premier whitewater challenger usually comes out on top. Used by all major adventure operators running the Zambezi and many other Big Waters worldwide, the KZ has proved itself over and over again as a fitting match for the great river god -Inyamayami himself.

DESIGN PHILOSOPHY

The KZ is built as a large expedition oar raft that doubles as a paddle raft with up to 14 pax. It's big tubes and huge load carrying capacity makes it a first choice for big water, long range expeditions or just packing a football team for a day's rush.

Its ease of maneuverability clearly maintains ARK's reputation for performance designed inflatable white rafts. The KZ is an excellent oar boat and can be rigged for centre and stern rigs or just as a paddle raft.

CUSTOMIZABLE

Whilst the ZAMBEZI is considered one of the world's best high-volume river rafts, we acknowledge that all rivers and river operations are unique and that many require customization adapted for this. Our production and design techniques allow us almost limitless versatility. Fully digital cutting and CAD design processes make this a reality. Customisable features such as tube shapes with higher and lower kick and rocker, through to D-ring placement and foot straps. In short, any boat is possible.

BRANDING

Even more exciting, you can brand your raft as much as your fantasy (and budget) desires. Just email us your logos and artwork or let us design it for you. ARK is highly experienced at branding boats with corporate identities and sponsorship promotions.

SPECIFICATIONS

STANDARD FEATURES

  • Full-wrap double skin
  • Rubber fender
  • Steel D-rings and grab rope
  • Self-bailing I-beam floor
  • Steel D-rings for the oar rig
  • Large volume inflation valves
  • All welded floors fitted with relief valve
  • 7 air chambers (minimum)
  • Fixed or removable thwarts
  • 6 carry handles for easy portage

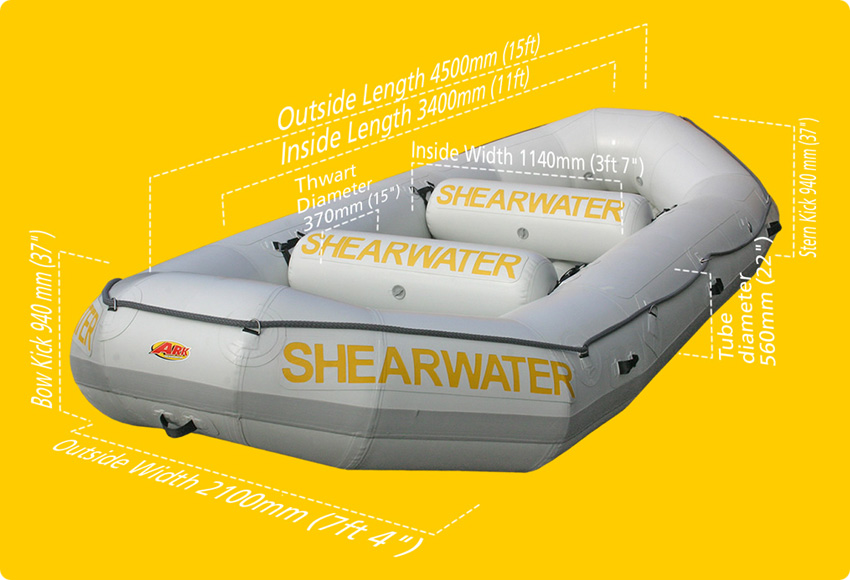

DIMENSIONS AND TECHNICAL SPECIFICATIONS

Series KZ450 KZ490 KZ550
Packed Size and Weight 100 x 56 x 46cm (85kg) 110 x 65 x 60cm (95kg) 120 x 68 x 65cm (105kg)
Length 4.50m 5.00m 5.4m
Width 2.26m 2.28m 2.28m
Tube Diameter 540mm 540mm 600mm
Stern / Bow Kick 860mm 860mm 1000mm
Thwarts 2-3 2-4 2-4
Thwart Diameter 360mm 360mm 360mm
Air Chambers 5 + thwarts 5 + thwarts 5 + thwarts
Carrying Power 6-9 persons 6-11 persons 6-14 persons

COLOURS

Available in any combination of the colours listed below:

Tube Trim Thwart
Red Red Red
Yellow Yellow Yellow
Grey Grey Grey
Royal Blue Royal Blue Royal Blue
Orange Orange
Black Black

CUSTOMISATIONS

  • Branding - full colour logos or standard lettering/numbering - you supply logos and artwork or let us do it for you
  • Optional footcups
  • Additional thwarts
  • Thwart size
  • Thwart attachment: fixed, removable D-ring, or removable/adjustable slotted baton
  • Additional carry handles
  • Additional D-rings
  • Portage bag
  • Material – ARK can supply rafts in different fabric specifications for particular applications (e.g. Polyurethane, and Poly/PVC blends)
  • Colours other than those in the colour table above are possible dependent on availability

If this is the boat you're after contact us.
