FULLY ENCLOSABLE TENTS

4x4 (Full Tent) 5x5 (Full Tent)
Floor dimensions 4m x 4m 5m x 5m
Height 2.8m 3.5m
Weight 75kg 115kg
Tube frame pressure 0.29 bar 0.29 bar
Inflation/deflation valves 22mm 1 1
Pressure safety valves Optional Optional
Doors 4 4
Netted Windows 8 8
Storm covers over Doors/windows Yes Yes
Packed dimension 1,3m x 0,6m x 0,6m 1,5m x 0,7m x 0,7m
Fabric
Cover and storm covers PVC coated Polyester fabric 400 gr/sqm PVC coated Polyester fabric 400 gr/sqm
Groundsheet PVC coated Polyester fabric 600 gr/sqm PVC coated Polyester fabric 600 gr/sqm
Netting over windows PVC coated Polyester netting PVC coated Polyester netting
Inflatable tubing (Inflatable boat fabric) PVC coated Polyester fabric 1000 grm/sqm PVC coated Polyester fabric 1000 grm/sqm

GAZEBO-STYLE TENTS

4x4 (Gazebo) 5x5 (Gazebo)
Floor dimensions 4m x 4m 5m x 5m
Height 2.8m 3.5m
Weight 55kg 80kg
Tube frame pressure 0.29 bar 0.29 bar
Inflation/deflation valves 22mm 1 1
Pressure safety valves Optional Optional
Packed dimension 1,3m x 0,6m x 0,6m 1,5m x 0,7m x 0,7m
Fabric
Groundsheet PVC fabric 600 gr/sqm PVC fabric 600 gr/sqm
Inflatable tubing(boat fabric) PVC fabric 1000 grm/sqm PVC fabric 1000 grm/sqm

CUSTOMISATIONS

ARK can provide custom branding and labelling
Additional securing points can be added.

4x4 5x5
Floor dimensions 4m x 4m 5m x 5m
Height 2.8m 3.5m
Weight 75kg 115kg
Tube frame 0.29 bar 0.29 bar
Inflation/deflation valves 22mm 1 1
Pressure safety valves Optional Optional
Doors 4 4
Netted Windows 8 8
Storm covers over Doors/windows Yes Yes
Packed dimension 1,3m x 0,6m x 0,6m 1,5m x 0,7m x 0,7m
Fabric
Cover and storm covers PVC coated Polyester fabric 400 gr/sqm PVC coated Polyester fabric 400 gr/sqm
Groundsheet PVC coated Polyester fabric 600 gr/sqm PVC coated Polyester fabric 600 gr/sqm
Netting over windows PVC coated Polyester netting PVC coated Polyester netting
Inflatable tubing(Inflatable boat fabric) PVC coated Polyester fabric 1000 grm/sqm PVC coated Polyester fabric 1000 grm/sqm

MINNOW MW SERIES

SERIES

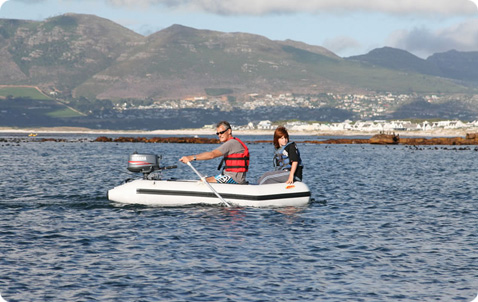

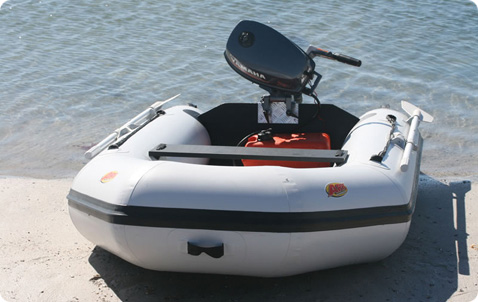

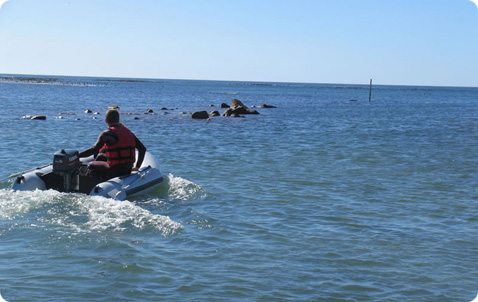

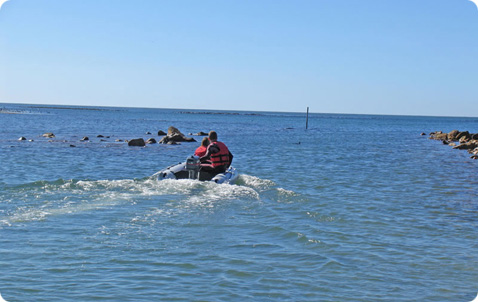

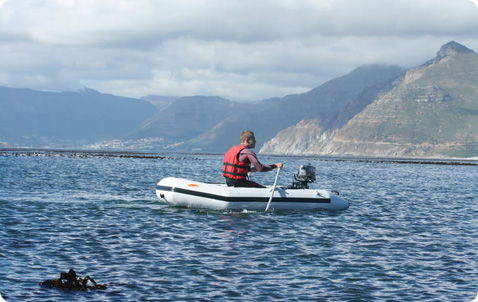

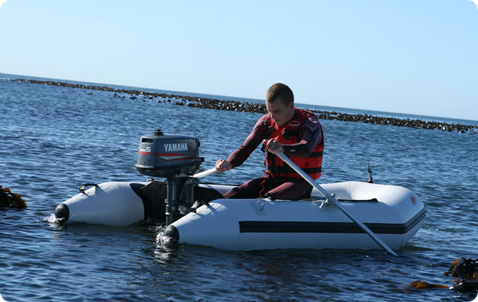

MW 270A (2.8 metre – Air floor)

APPLICATIONS

Fishing / Crayfishing / Yacht tendering / Family holiday inflatable and adventure runabout

DESIGN PHILOSOPHY

Lightweight and extremely portable, the Minnow was built to be easily inflated – whether on the foredeck, pier, beach, or even in the water from the swim step of your powerboat. Designed to pack away small for stowage in the boot or a locker.

The built-in, ready-to-row oar system provides efficient propulsion when not motoring. Oars conveniently break down for easy stowage

The new Air Floor variation features a specialised high-pressure inflatable floor constructed from drop thread fabric. This advanced feature, greatly improves rigidity and stability, usually only enjoyed by heavier vessels in a larger class.

SPECIFICATIONS

STANDARD FEATURES

  • PVC covered marine ply transom
  • Aluminum transom plate
  • Fender rub rail
  • D-rings welded with lifeline
  • Drain x 1
  • Bench seat x 1
  • Super stiff drop thread air deck floor
  • Self bailers
  • Oars and oar lock x 2
  • Boat bag
  • Inflation pump
  • Repair kit

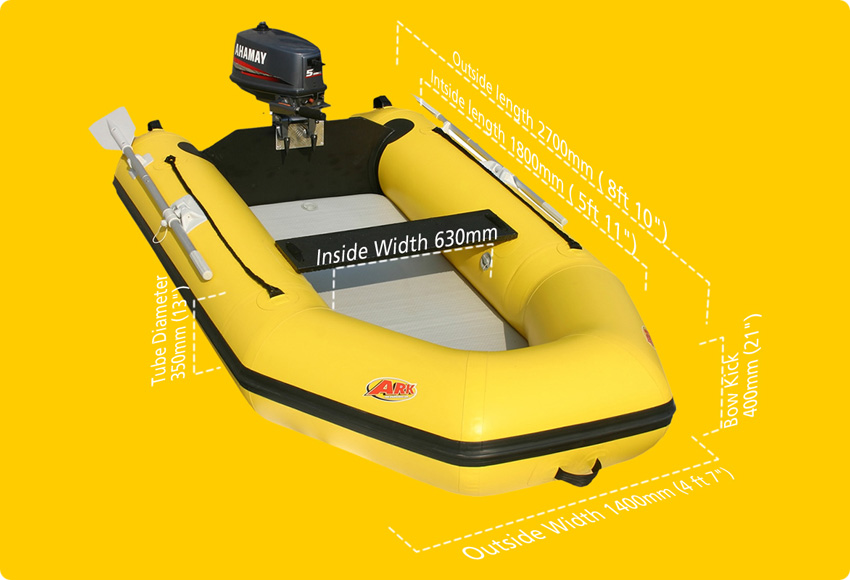

DIMENSIONS AND
TECHNICAL SPECIFICATIONS

Packed Size
and Weight
55 x 22 x 20cm (27kg)
Length 2.7m
Width 1.45m
Tube Diameter 350mm
Engine Range 2-5hp
Carrying Power 2.5 persons

COLOURS

Available in any combination of the colours listed below:

Tube Trim
Red Black
Yellow
Grey
Royal Blue
Light Blue
Navy Blue

CUSTOMISATIONS

  • Branding - full colour logos or standard lettering/numbering - you supply logos and artwork or let us do it for you
  • Additional carry handles
  • Additional D-rings for securing equipment
  • Material – ARK can supply rafts in different fabric specifications for particular applications (e.g. Polyurethane, and Poly/PVC blends)
  • Colours other than those in the colour table above are possible dependent on availability

If this is the boat you're after contact us.
