FULLY ENCLOSABLE TENTS

4x4 (Full Tent) 5x5 (Full Tent)
Floor dimensions 4m x 4m 5m x 5m
Height 2.8m 3.5m
Weight 75kg 115kg
Tube frame pressure 0.29 bar 0.29 bar
Inflation/deflation valves 22mm 1 1
Pressure safety valves Optional Optional
Doors 4 4
Netted Windows 8 8
Storm covers over Doors/windows Yes Yes
Packed dimension 1,3m x 0,6m x 0,6m 1,5m x 0,7m x 0,7m
Fabric
Cover and storm covers PVC coated Polyester fabric 400 gr/sqm PVC coated Polyester fabric 400 gr/sqm
Groundsheet PVC coated Polyester fabric 600 gr/sqm PVC coated Polyester fabric 600 gr/sqm
Netting over windows PVC coated Polyester netting PVC coated Polyester netting
Inflatable tubing (Inflatable boat fabric) PVC coated Polyester fabric 1000 grm/sqm PVC coated Polyester fabric 1000 grm/sqm

GAZEBO-STYLE TENTS

4x4 (Gazebo) 5x5 (Gazebo)
Floor dimensions 4m x 4m 5m x 5m
Height 2.8m 3.5m
Weight 55kg 80kg
Tube frame pressure 0.29 bar 0.29 bar
Inflation/deflation valves 22mm 1 1
Pressure safety valves Optional Optional
Packed dimension 1,3m x 0,6m x 0,6m 1,5m x 0,7m x 0,7m
Fabric
Groundsheet PVC fabric 600 gr/sqm PVC fabric 600 gr/sqm
Inflatable tubing(boat fabric) PVC fabric 1000 grm/sqm PVC fabric 1000 grm/sqm

CUSTOMISATIONS

ARK can provide custom branding and labelling
Additional securing points can be added.

4x4 5x5
Floor dimensions 4m x 4m 5m x 5m
Height 2.8m 3.5m
Weight 75kg 115kg
Tube frame 0.29 bar 0.29 bar
Inflation/deflation valves 22mm 1 1
Pressure safety valves Optional Optional
Doors 4 4
Netted Windows 8 8
Storm covers over Doors/windows Yes Yes
Packed dimension 1,3m x 0,6m x 0,6m 1,5m x 0,7m x 0,7m
Fabric
Cover and storm covers PVC coated Polyester fabric 400 gr/sqm PVC coated Polyester fabric 400 gr/sqm
Groundsheet PVC coated Polyester fabric 600 gr/sqm PVC coated Polyester fabric 600 gr/sqm
Netting over windows PVC coated Polyester netting PVC coated Polyester netting
Inflatable tubing(Inflatable boat fabric) PVC coated Polyester fabric 1000 grm/sqm PVC coated Polyester fabric 1000 grm/sqm

Using our inflatable boat manufacturing expertise, ARK has designed a range of tough and durable commercial grade inflatable fender products. Our range includes long narrow-diameter roller tubes, to conventional fenders, and also ball-type inflatable fenders. We use premium quality marine-grade PVC, the seams are all heat welded, and D-Rings are HF welded onto the inflatable fenders.

All models are supplied with stainless steel 50mm D-Rings each end, and the larger models are supplied with double D-Rings each end.

Easy to inflate, easy to deflate and stow away. All inflatable fender products are supplied with a valve adapter (to allow inflation from various pressurized air sources) and a repair kit.

Optional extras include carry bags, hand pump, custom branding and labeling.

ARK will also design and manufacture custom size/specification inflatable fenders.

APPLICATIONS

  • Inflatable rollers for rolling boats and goods along beach, sand banks, boat launching and recovery.
  • Inflatable fenders for vessels; from small yachts to large commercial boats.
  • Inflatable fenders for quaysides.

FEATURES

  • Marine grade 1050gsm PVC fabric used for smaller fenders, 1450gsm PVC used for larger fenders.
  • Heat welded seams - for reliable and long product service.
  • Stainless steel D-Rings used on all fender products
  • D-Rings supplied on both ends, so that fender can be deployed vertically or horizontally.
  • Large air-valve for quick inflation and deflation

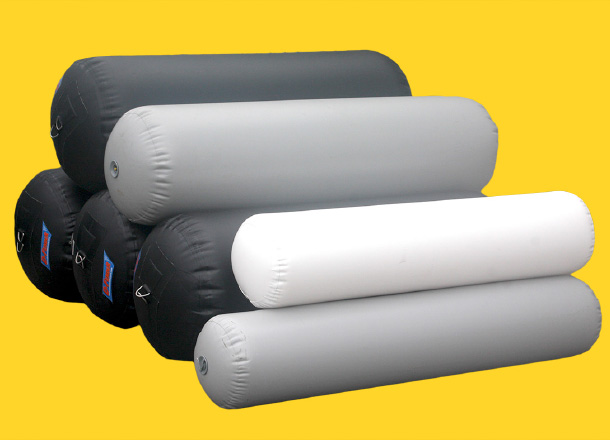

PRODUCT RANGE

FENDER MODEL LENGTH (cm) DIAMETER (cm) SPECIAL FEATURES TYPICAL APPLICATIONS
Roller-150 150 36 D-Ring and handle each end Boat rollers
Roller-300 300 36 D-Ring and handle each end Boat rollers
Fender-75/36 75 36 D-Ring each end Yacht fenders
Fender-150/36 150 36 Double D-Ring each end Yacht / Superyacht / vessel fenders
Fender 150/60 150 60 Double D-Ring each end Superyacht / vessel / quayside fenders
Fender 150/80 150 80 Double D-Ring each ends Superyacht / vessel / quayside fender
Ball Fender-75 75 Double D-Ring and handle on top General purpose commercial
Ball Fender-100 100 Double D-Ring and handle on top General purpose commercial

COLOUR OPTIONS

Black Light grey White
Royal Blue Yellow Red

CUSTOMISATIONS & OPTIONS

  • Branding - full colour logos or standard lettering/numbering - you supply logos and artwork or let us do it for you
  • Additional D-rings or webbing attachments for securing equipment or special applications
  • Carry bag
  • Double action inflation pump

If you'd like to know more contact us.
